Closed Cooling TowerZXZ-N10G

The closed cooling tower is treated with a. Temperature of the cubic meters per hour, a-and inlet temperature of 37, and a, effluent. However, if the inlet and outlet temperatures is in non-standard operating conditions, the amount of a-treated would a LSO respond to changes.
Commonly used in printing presses, quenching machine tools and other places with a small amount of heat.

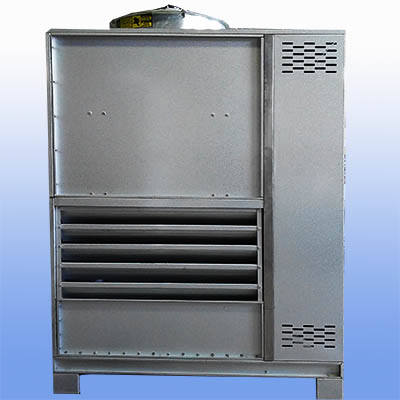

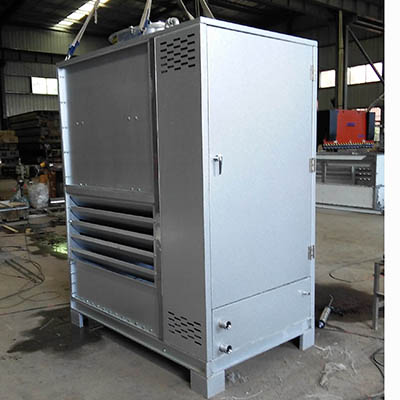

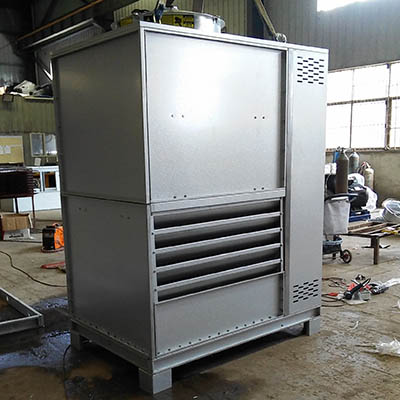

ZXZ-N10G closed cooling tower using 304 stainless steel heat exchanger, the bottom of the heat exchanger configuration MC Series PVC film Suspension filler. The with of direct-attached waterproof Moisture-proof fan.
Can is used in high temperature control requirements of the occasion.

2. Shell:
In order to adapt to harsh environment, ZXZ series Cooling tower shell using aluminum alloy plate. Aluminum plated plate has good corrosion resistance to ordinary tap water, softened water and other neutral liquids. After my company's practical experience, magnesium aluminum alloy plate in the zinc layer without scratches, no damage, the use of 15 years is still not corrosive. However, if the circulating water in the user's environment is acidic, the service life is shortened.

3. Cooling Coil Tube:
Cooling coil is the key component of the closed cooling tower, the internal cooling medium, the outside through the wind and water spray to meet the cooling requirements.
My company cooler has the following technical features:
A The cooling coil is made of 304 stainless steel tubes, and a single module consists of 10 groups of serpentine heat exchangers. The flow direction of the water side of each group of heat exchanger and the direction of air flow outside the Tube form wind and water reverse. The pipe arrangement of each group of heat exchanger has taken into account the slope, and the slope is consistent with the direction of water flow in order to facilitate the discharge of water in the tube.
B The support frame of the cooling coil is welded by 304 stainless steel. The Tube support plate is made of 10mm high quality PVC plate. Because the hardness of PVC plate is lower than the hardness of stainless steel pipe tube, so the stainless steel heat transfer tube tube vibration, will not damage.
C. Each group of heat exchanger after pressure test, the test in the water for 1.8MPa air pressure experiment, and keep pressure for 24 hours to ensure that there is no leakage.

4, into the wind window:
ZXZ Series closed cooling tower into the wind blinds for my company's proprietary products. Unique products are not only beautiful shape, more robust and durable. The blinds have been tested for years, not only for long service life, but also for the fact that there will never be any more sprinkler water splashing out of the cooling tower. This kind of installation uses a slot type, similar to the glass windows used by the home. Can be pushed left and right, can also be gently pushed out. When the user needs to maintain the cooling tower, even the wrench and screwdriver do not need to be belt to disassemble the blinds. This kind of shutter design is more in line with the aerodynamic principle, so that the air into a laminar flow into the cooling tower evenly, fully ensure that the air through the heat transfer coil uniformity. The wind resistance is smaller, the same fan, the air volume will be larger. The cooling effect will be better.
5. Water Retaining PLATE:
    My company's Zxz-n series closed cooling tower, at the top of the blinds, the bottom of the coil will be fitted with water retaining board. The spray water near the edge of the cooling tower drips from the top, drips onto the baffle, and then flows back into the catchment plate.

6, sprinkler system:

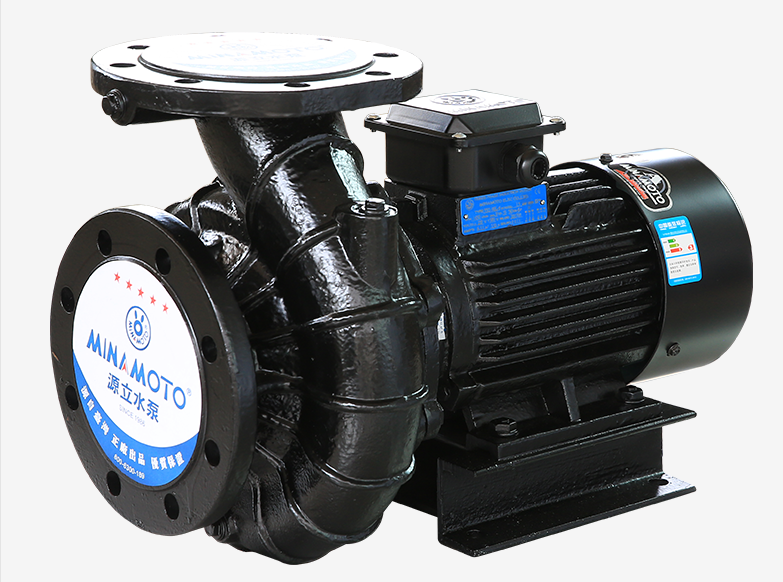

    The ZXZ series closed cooling tower features a "source" brand (from Taiwan). Motor Protection class IP55, insulation grade F class.

Sprinkler system is mainly composed of sprinkler pump, continuous takeover road, sprinkler pipe, spray first class. When the temperature exceeds the set temperature, the system controls the automatic opening of the sprinkler system to ensure that the cooling temperature meets the requirements.
Sprinkler head: Spray head using ABS and PVC materials once injection molding of a new type of flower orchid nozzle, high strength and long service life, fine water droplets, uniform spray, water area is large, cooling effect is good. Can reduce pump lift and loss.
7, Water Collector:
The main function of the water collector is to recycle and recycle the water in the hot steam formed by the water sprayed on the surface of the copper tube or filler;
My company's unique tu12c type of high-efficiency flow type water collector, after three times to change the direction of air flow, to ensure efficient ventilation, so that the flow rate of spray water is less than 0.01%, so that equipment placed in sensitive areas of fog has become possible.
